DATA SHEET
SKY13347-360LF: 0.5 – 3.0 GHz SPST Switch,
50 Ω Terminated
Applications
? Wireless infrastructure systems
Features
? 50 Ω terminated RF output
? Low insertion loss: 0.7 dB @ 2.0 GHz
? High isolation: 35 dB @ 2.0 GHz
? Small, DFN (8-pin, 2 x 2 mm) package (MSL1, 260 ? C per
JEDEC J-STD-020)
RF2
50 Ω
RF1
S2178

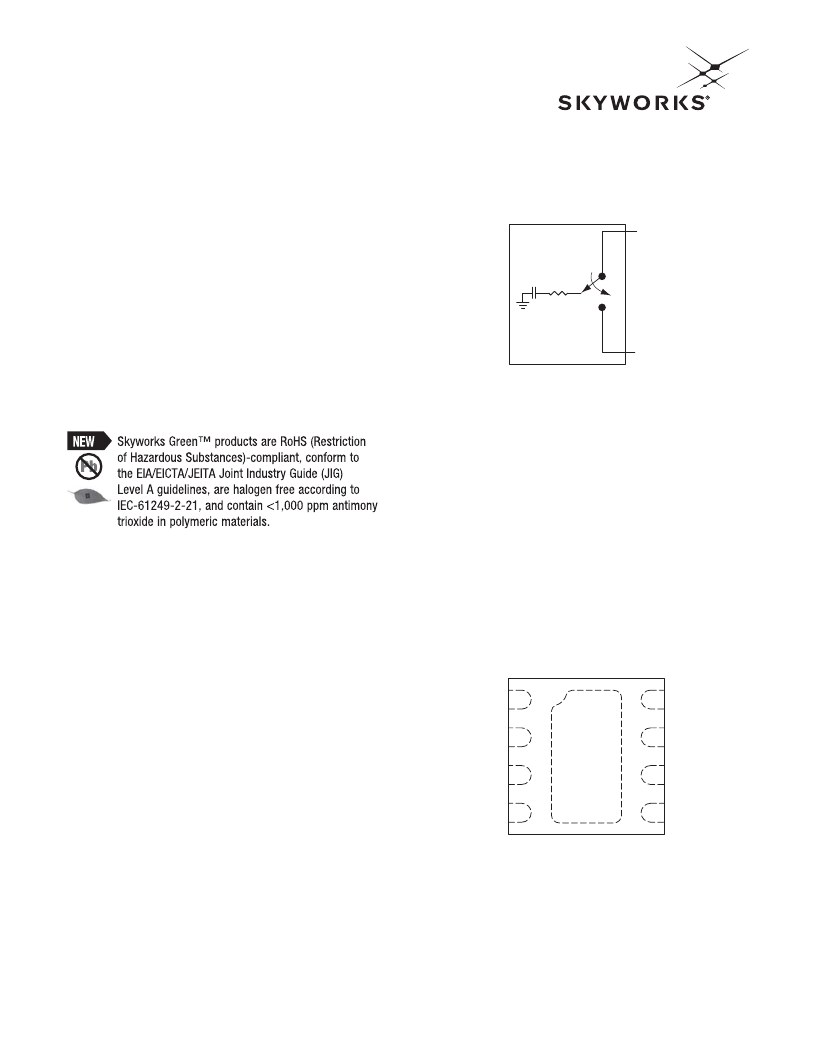

Figure 1. SKY13347-360LF Block Diagram
Description
The SKY13347-360LF is a pHEMT GaAs Single-Pole, Single-
Throw (SPST) switch with a 50 Ω terminated output. The high
linearity performance, low insertion loss, and high isolation
achieved by the SKY13347-360LF make it an ideal choice for
many cellular and wireless infrastructure applications.
The switch is manufactured in a compact, 2 x 2 mm, 8-pin Dual
Flat No-Lead (DFN) package.
A functional block diagram is shown in Figure 1. The pin
configuration and package are shown in Figure 2. Signal pin
assignments and functional pin descriptions are provided in
Table 1.
N/ C
G ND
G ND
N/ C
1
2
3
4
8
7
6
5
RF2
V1
V S
RF1
S2179
Figure 2. SKY13347-360LF Pinout – 6-Pin MLPD
(Top View)
Skyworks Solutions, Inc. ? Phone [781] 376-3000 ? Fax [781] 376-3100 ? sales@skyworksinc.com ? www.skyworksinc.com
201393A ? Skyworks Proprietary Information ? Products and Product Information are Subject to Change Without Notice ? October 12, 2010
1
